OVS has the potential to procure all types of valves in variety of sizes and classes required by the Oil, Gas and Petrochemical industries. We are well capable of supplying our clients with valves manufactured by eminent and reliable factories and according to ANSI, ASTM, DIN, ISO and BS standards.
All types of valves are available in range of 1/2″ up to 72″, class 150 to 2500. These types include; BALL, GATE, GLOBE, CHECK, CONTROL, BUTTERFLY, CHOKE, etc.
Below are some of the representatives and manufacturers cooperating with OVS.
Types

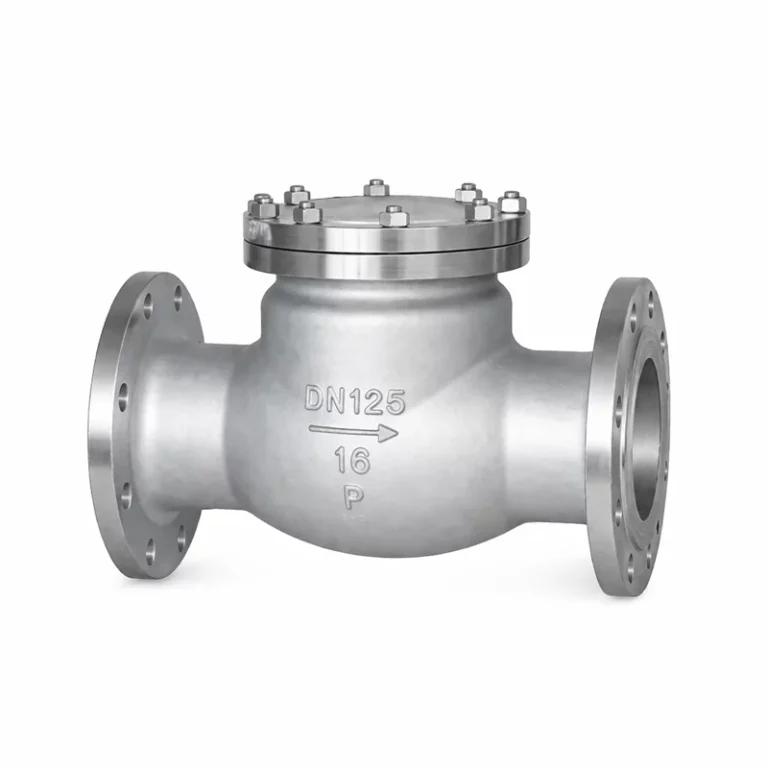

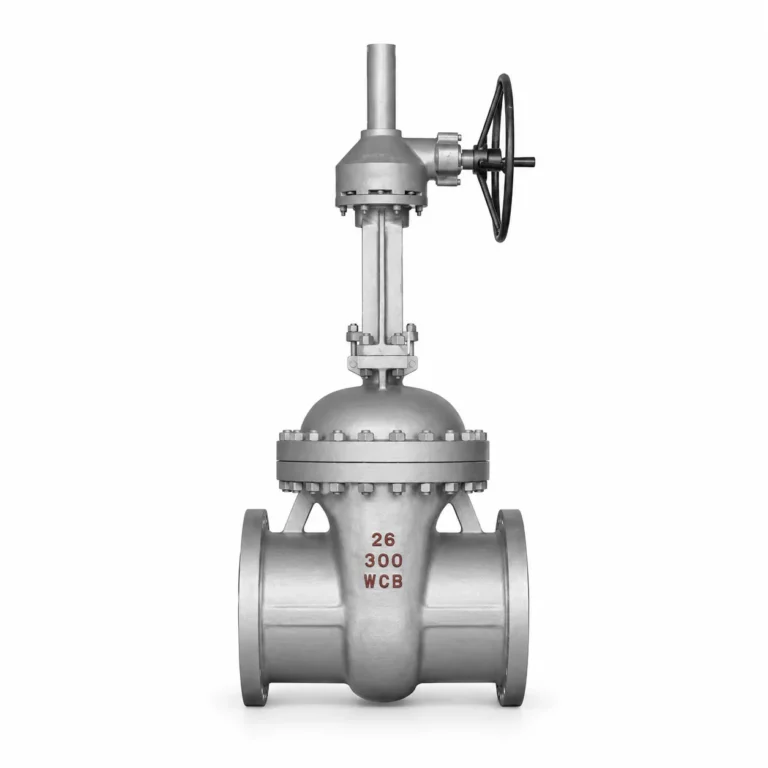

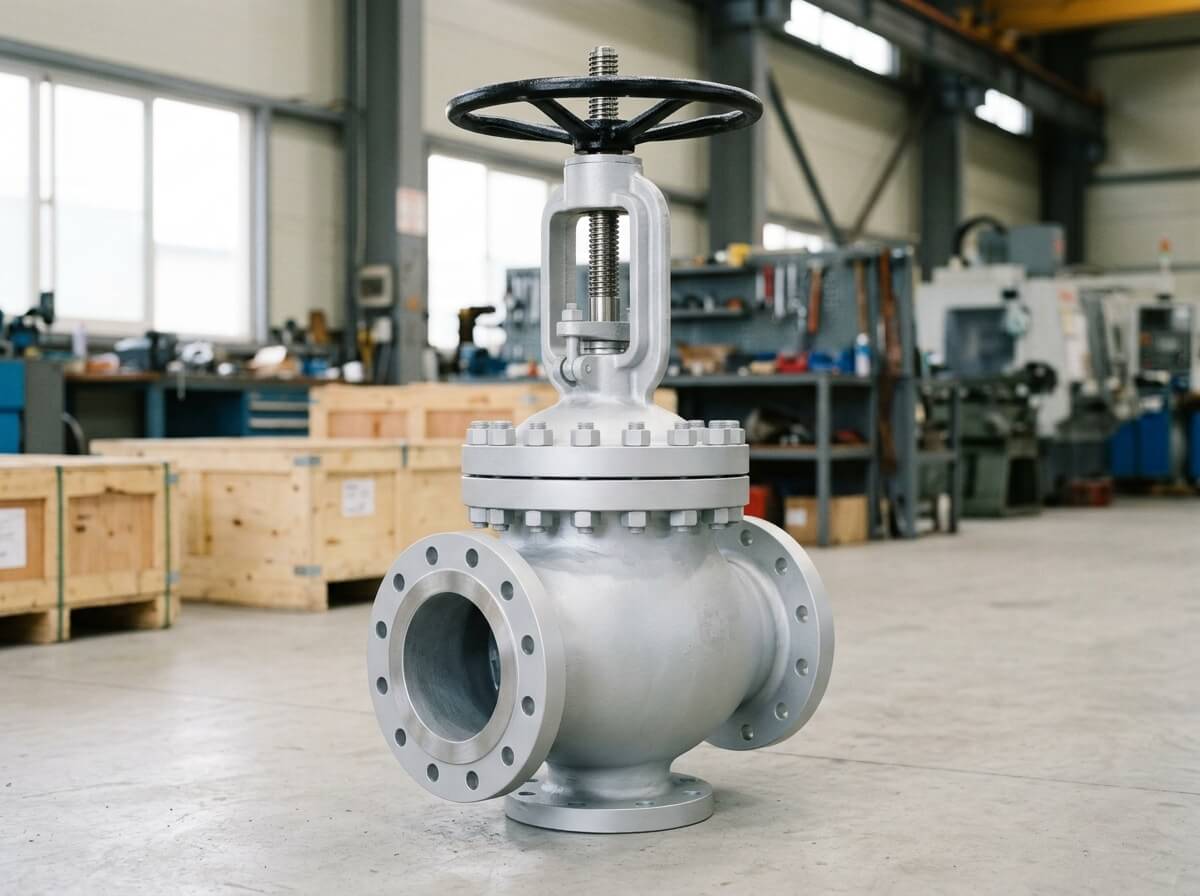

Gate, Globe & Check Valves
| Size Range : 1/2″ – 72″ |
| Class : 150 to 2500 |
| Material : Cast Steel, Stainless Steel, Special Alloy (Monel, Inconel, Incoloy, Hastelloy, Duplex, Super Duplex, etc.), Cast Iron, Bronze |
| Models :Gate Valve : Solid & Flexible Wedge, OS & Y, ISRSGlobe Valve : Plug & Ball DiscCheck Valves : Piston, Ball, Swing & Wafer Type |
| Connections : Screwed NPT, Socket Weld, Butt Weld, Flanged RF/RTJ, ANSI or DIN and Mixed-up Ends. |
| Body Connection : Bolted Bonnet, Welded Bonnet & Screwed Bonnet |
| Accessories : Extended Bonnet, Extended Stem, Extended Body, Motorized, Gear Operated, Locking Device, Y Type |
| Applicable Standards : API, ASME, ASTM, BS, ISO, MSS, NACE, DIN |
Ball Valves
| Size Range : 1/2″ – 72″ |
| Class : 150 to 2500 |
| Material : Cast Steel, Low Carbon Steel, Special Alloy, Bronze, Aluminum, Monel, Inconel, Hastelloy, Titanium, etc. Duplex and Super Duplex |
| Models : Screwed Body (NPT, with Nipples, Three Pieces) Forged Bolted Body (Three Pieces with Nipples) End Entry, Top Entry, Split Bolted Body, Floating, Trunnion, Metal to Metal Seat |
| Connections : Screwed NPT, Socket Weld, Butt Weld, Flanged RF/RTJ |
| Accessories : Extended Stem, Motorized, Gear Operated |
| Applicable Standards : API (6A, 6D, 6FA, 598, 607, 608, Q1), ASME, ASTM, BS, ISO, MSS/NACE |

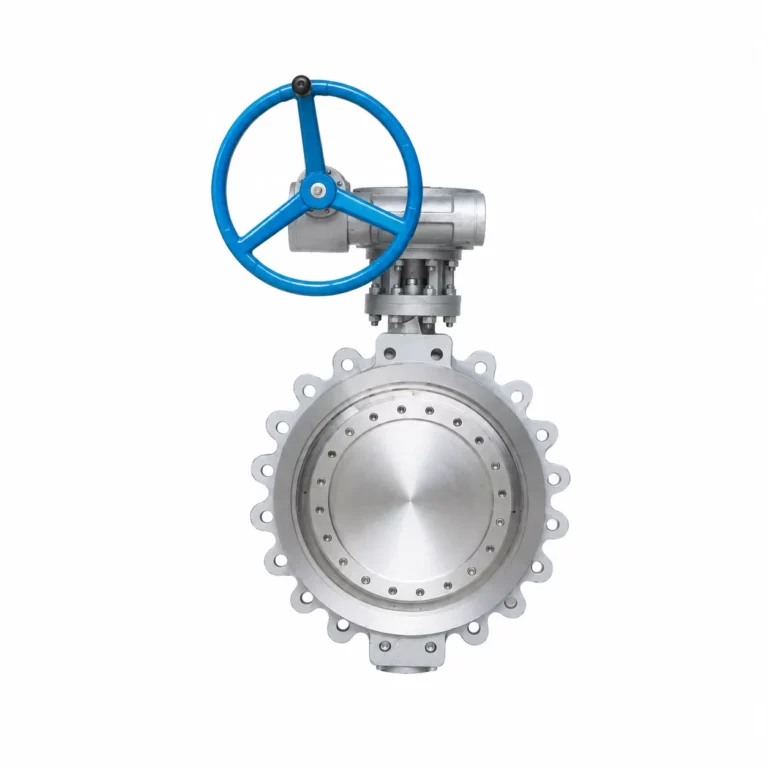

Butterfly Valves
| Size Range : 1/2″ – 72″ |
| Class : 150 to 600 |
| Material : Cast Steel, Carbon Steel, Special Alloy, Bronze, Aluminum, Duplex and Super Duplex, Monel, Inconel, Hastelloy, Titanium, etc. |
| Connections : Wafer, Lug, Butt Weld, Flanged |
| Accessories : Extended Bonnet/Stem, Motorized, Heating Jacket |
| Applicable Standards : API, ASTM, BS, MSS, NACE |
Special Valves
On Your Requested, We Will Supply all Types of Special Valves
- X-Mass Tree
- Through Conduit Gate Valves
- Urea Services Valves
- Choke Valves
- High Pressure Valve (API)
- Cryogenic Globe Valve
- Bellows Sealed Gate Valve
- Branch Gate Valve
- Alkylation Gate/Globe Valve
- Conversion Kits for Leak Proof
Other Types
- Spherical Disk Valve
- Diaphragm Valve
- Needle Valve
- Pinch Valve
- Plug Valve
Industry: Oil & Gas Petrochemicals Power Generation
